As technology moves beyond flat screens into 3D spaces, designers face a new challenge: creating experiences that users don’t just see, but step into. Whether it’s Augmented Reality (AR), Virtual Reality (VR), or Extended Reality (XR), immersive tech is reshaping how we interact with the digital world.
This article is a practical guide for UX designers who want to explore immersive design — from key terms to real-world use cases. We’ll walk through principles, devices, interaction models, and even digital twins.
Table of Contents
- What Is an Immersive World?
- AR, VR, XR — Understanding the Spectrum
- Common Terminology & Pillars in Immersive UX
- Devices and Platforms
- Core UX Principles, Spatial Inputs and Interactions in XR Design
- Design Process: From Concept to SDK
- Real-World Industry Domains
- What Are Digital Twins and Simulations
- A Case Study on Industrial Training & Field Service in Semiconductor
- Final Thoughts
1. What Is an Immersive World?
An immersive world is a digital or mixed space that surrounds the user and feels real. Instead of watching something on a screen, you become part of the experience. You can look around, move your hands, talk, and interact like you do in real life.
In simple terms: Immersive tech lets users’ step into the digital world instead of viewing it through a screen. As designers, our job is to make these experiences feel smooth, natural, and safe.

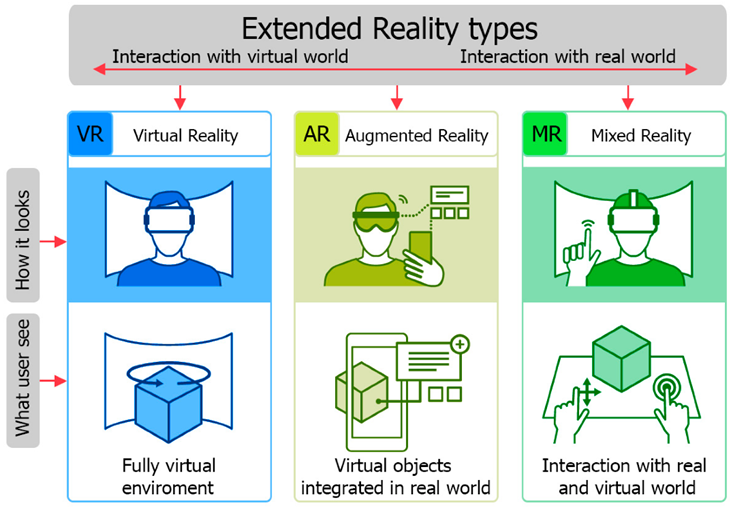

2. AR, VR, XR — Understanding the Spectrum
Let’s break down these terms:
AR (Augmented Reality): Adds digital elements to the real world.
Example: Pokémon Go, Google Lens
VR (Virtual Reality): A fully digital environment that replaces reality.
Example: Meta Quest, HTC Vive
MR (Mixed Reality): Digital and real objects interact in real time.
Example: A digital button on a real table responds to touch
XR (Extended Reality): A broad term that includes AR, VR, MR, and anything in between.
3. Common Terminology & Pillars in Immersive UX
Creating a truly immersive AR or VR experience depends on several important elements. These are the “building blocks” that make users feel like they’re part of the virtual or augmented world. Let’s go through each one using easy language and real-world examples.
- Teleportation
Instantly move from one place to another in the virtual world. Enhances speed and convenience without physical motion.
Example: Jumping to the next room in a VR museum. - Comfort Zone
The area around the user that feels natural and easy to interact within. Supports ergonomic design.
Example: Menus placed at chest height for easy access. - Floating Screen
A virtual screen that hovers in 3D space, enhancing visibility without obstructing real-world elements.
Example: An AR checklist floating beside a real machine. - Play Area
The safe physical space for movement while using VR. Prevents collisions and injury.
Example: Meta Quest defines this zone with visible boundaries and warnings. - Anchoring
Fixing digital content to a real-world location so it stays consistently placed.
Example: An AR manual anchored to a real desk. - Spatial Mapping
The system’s ability to scan and understand physical surfaces for accurate placement of virtual elements.

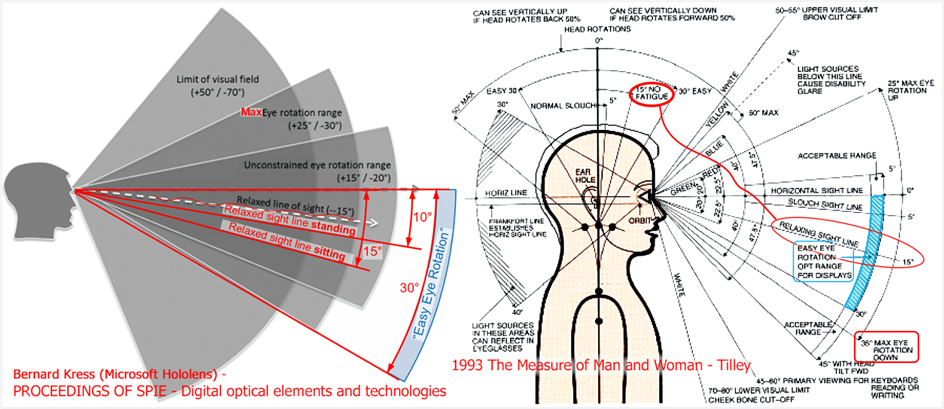

Example: HoloLens placing a 3D model on a scanned table. - Field of View
The amount of the digital world visible at once. A wider field improves immersion.
Example: A full 360° mountain view in VR makes you feel truly present. - Presence
The emotional and psychological sense of “being there” in the virtual environment.
Example: Feeling nervous on a virtual rooftop despite being safe at home. - Agency
The user’s ability to make meaningful decisions and take action within the experience.
Example: Picking up a virtual key or interacting with a product in AR. - Affordance
Visual cues that indicate how to interact with digital elements, reducing the need for instructions.
Example: A glowing button looks tappable; a handle looks like it should be pulled. - Feedback
System responses (visual, audio, or tactile) that confirm user actions. Essential for usability and engagement.
Example: A button lights up or vibrates when pressed; AR reveals data after a scan. - Degree of Control
The precision and smoothness with which users can interact with content. More control improves usability.
Example: Painting fine details in VR or rotating a digital object fluidly in AR. - Gaze Tracking & Gaze Control
Using eye movement to detect attention or trigger actions — great for hands-free control.
Example: Selecting a menu item by looking at it for two seconds. - Haptics
Tactile feedback, such as vibrations, that simulate the sense of touch and increase realism.
Example: Feeling a buzz when pressing a virtual button. - Gesture Control
Using hand or body movements to interact naturally with the virtual space.
Example: Pinching to zoom or waving to scroll through content. - Voice Control
Using spoken commands to trigger actions — fast, intuitive, and hands-free.
Example: Saying “Open map” or “Next step” in an AR guide. - Body World
Your digital self in AR/VR — represented through hands or a full avatar to increase embodiment and interaction.
Example: Seeing your hand hold tools during VR training.

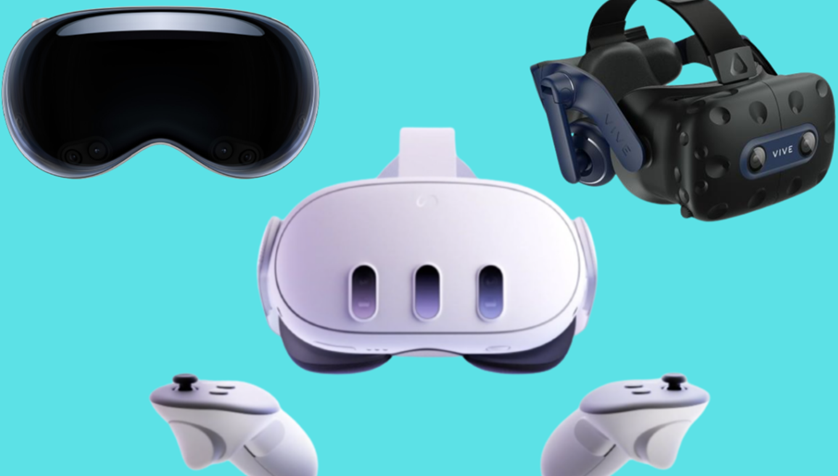

4. Devices and Platforms
Common immersive platforms include:
- Meta Quest 3 (VR/XR): Hand tracking, controllers, voice
- Apple Vision Pro (AR/MR): Eye tracking, gestures, voice
- HoloLens 2 (Enterprise AR): Hand gestures, spatial mapping
- Magic Leap (Industrial/Mixed): Gaze and gesture tracking
- HTC Vive (VR/XR): Full-body tracking + controllers
5. Core UX Principles & Interactions in XR
Great XR design puts people at the center — focusing on accessibility, comfort, intuitive interaction, and spatial understanding.
This guide breaks the design process into four foundational pillars, each supported by real-world interaction examples.
a. Accessibility & Inclusivity
Design immersive systems that adapt to every user’s needs.
- Customizable Interfaces
Let users adjust font sizes, contrast levels, and sensitivity.
Example: AR smart glasses allow users to enlarge text and boost contrast. - Multi-modal Input Support
Offer gaze, voice, gestures, or controllers for flexibility.
Example: A user with motor impairments navigates using gaze and voice. - Clear Feedback Mechanisms
Provide visual, auditory, or tactile feedback after every action.
Example: Pressing a button triggers a color change and a click sound. - Accessibility Modes
Include options like seated mode, left/right-hand support, simplified UI.
Example: A user activates seated mode for a long VR work session.
b. Comfort & Safety
Ensure ergonomic and safe interactions that minimize fatigue and discomfort. User comfort is crucial for long-term engagement and reducing motion sickness.
- Ergonomic Interaction Zones
Design interactions within a comfortable reach (0.5–1.5 meters).
Example: Floating UI panels appear at chest or eye level. - Realistic Object Behavior
Match real-world physics for immersion and predictability.
Example: A virtual ball bounces naturally on the floor. - Boundary Awareness Systems
Notify users when nearing physical objects.
Example: Meta Quest’s Guardian system shows a grid when you approach furniture. - Visual Affordances
Use glow, hover effects, or motion cues to show what’s interactive.
Example: A virtual lever glows when your hand nears it. - Tactile & Auditory Feedback
Reinforce actions through sound or vibration.
Example: A drawer vibrates slightly with a creaking sound when opened. - Undo & Reset Options
Allow quick recovery from mistakes.
Example: Holding your palm open resets the interface to default. - Motion Sickness Prevention
Prefer teleportation or fade-in effects over smooth locomotion.
Example: Users jump between rooms instead of walking continuously.
c. Spatial Information Architecture
Reimagine navigation, menus, and content layout in 3D space.
- Spatial Organization
Arrange content in clusters around the user’s space.
Example: Tools to the left, navigation behind, documents floating ahead. - Contextual Menus
Reveal tools when and where they are needed.
Example: Looking at a 3D model brings up editing tools nearby. - Wayfinding Aids
Help users navigate spatial environments.
Example: Directional arrows guide users through a virtual museum.
d. Natural Interactions
Let users interact with XR environments using familiar, real-world behaviors. Natural input methods like gaze, gesture, voice, and touch create seamless engagement.
Input Types & Real-World Examples:
- Touch (via Controllers)
Grabbing, pointing, or pressing buttons using physical devices.
Example: Picking up a hammer in VR with a controller. - Voice Control
Hands-free interaction using natural speech.

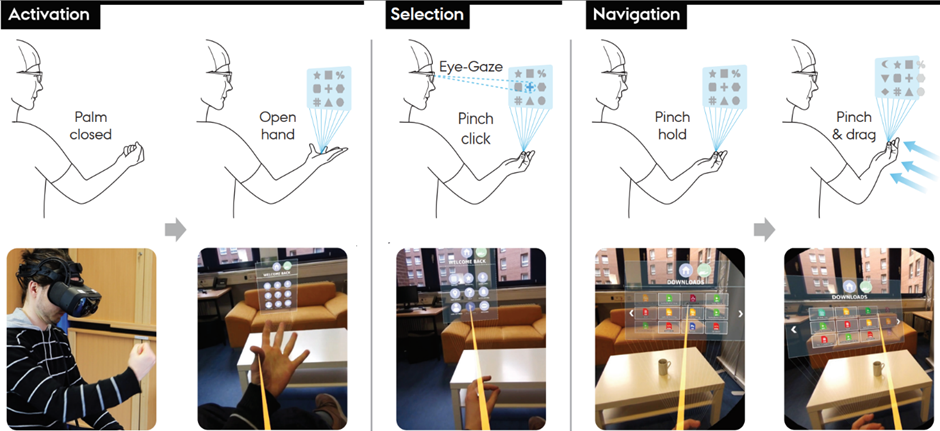

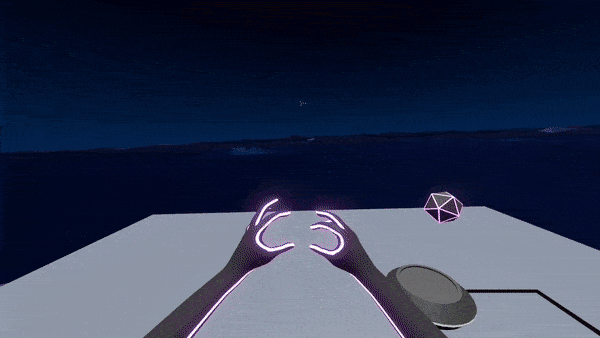

Example: Saying “Open map” to trigger navigation tools. - Hand Gestures (Sensor-Based)
Use fingers and hand movements — no hardware needed.
Common gestures are:
Pinch — Select an item
Swipe — Scroll
Tap — Trigger an action
Hold & Move — Drag/rotate a 3D object
- Gaze-Based Control
Use eye and head tracking to highlight or trigger actions.
Example: Looking at a menu item for 2 seconds selects it.
- Teleportation & Locomotion
Enable movement using pointing or jumping, instead of walking.
Example: Teleport across a VR environment using a pointer ray.

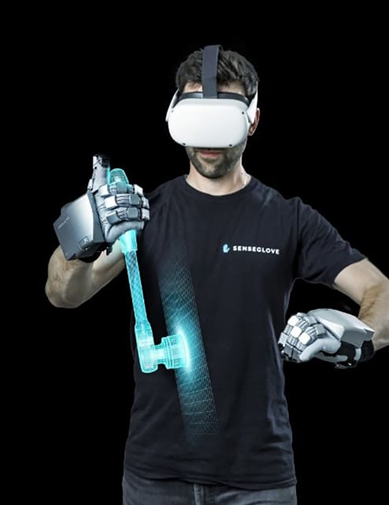

- Haptics & Force Feedback
Simulate physical touch via vibrations or pressure.
Example: Feeling a light pulse when you push a virtual button.
- Boundary Feedback
Notify users when approaching unsafe or limited spaces.
Example: A grid appears when nearing your wall while wearing a headset.
6. The XR Design Process: From Concept to SDK
- Discovery & Research — Assess if users are seated or moving; match input methods to hardware.
- Ideation & Storyboarding — Plan scenes and spatial transitions using 3D storyboards.
- Wireframes & Prototyping — Build spatial mockups in Unity, Unreal, or Figma’s 3D tools.
- Testing with SDKs — Validate in ARKit, ARCore, MRTK; check comfort and usability.
- Handoff to Developers — Provide annotated assets (scenes, triggers, gesture notes).
7. Real-World Use Cases
Immersive UX is transforming sectors beyond gaming:
- Healthcare: AR-guided surgeries and training
- Education: Virtual classrooms and labs
- Retail: AR try-on experiences
- Manufacturing: Work instructions via smart glasses
- Field Service: Hands-free manuals
- Smart Factories: 3D dashboards for monitoring
8. Digital Twins and Simulations in AR/VR
AR/VR Simulators
Simulators digitally recreate real-world environments or scenarios to support training, testing, and visualization in a safe, controlled setting.
Use Cases
Aviation — Flight simulators for pilot training.
Emergency Response — Disaster drills and evacuation protocols.
Healthcare — Practicing medical procedures in a risk-free virtual setting.
Digital Twins
A digital twin is a real-time, virtual replica of a physical object, system, or process, continuously updated via IoT sensors and data streams.
Use Case
Manufacturing — Visualize and interact with a real factory floor in VR to simulate workflows, detect faults, or train workers.
Healthcare — Simulate a surgery using a digital twin of a patient’s organ based on actual scans.
9. A Case Study on Industrial Training & Field Service in Semiconductor
Industry Context
Semiconductor manufacturing involves high-precision environments where field engineers operate and maintain highly complex equipment under strict cleanroom conditions. Effective training is essential, yet traditional formats — manuals, videos, and shadowing — often fail to convey the intricacies of advanced process tools and safety protocols.
Immersive technologies like Augmented Reality (AR), Virtual Reality (VR), and digital twins are reshaping how knowledge is transferred and equipment is serviced in these critical environments. Here’s how:
Use Case 1: AR-Guided Field Service Training
Scenario: A new technician is being trained to service a wafer processing chamber.
Traditional Pain Points:
- Manuals and videos offer limited spatial context.
- Live equipment maintenance carries high risk of error.
- Availability of senior experts for hands-on mentoring is limited.
AR-Based Immersive Solution
Using an AR headset such as a wearable smart visor, the technician can:
- View 3D service instructions directly overlaid on the actual hardware.
- Isolate components using gesture controls (e.g., internal plasma chamber).
- Access contextual checklists with a simple gesture.
- Capture video footage of maintenance steps for training or compliance documentation.
UX Interaction Highlights:
Palm-up — Opens contextual menus or task checklists
Pinch (Air Tap) — Confirms steps or selects machine parts
Grab-and-Drag — Moves or inspects internal components
Voice Command — “Next Step”, “Highlight Component”, etc.
Use Case 2: VR-Based Cleanroom & Safety Training
Scenario: New employees are trained to follow cleanroom protocols and respond to emergencies in a semiconductor fab setting.
VR Training Workflow
Wearing immersive headsets, trainees are immersed in a full-scale virtual fab environment where they perform actions like:
- Following proper gowning and clean entry procedures
- Operating simulated tools using digital wafer cassettes
- Practicing emergency drills, such as handling chemical spills or evacuating
UX Interaction Highlights:
Gaze + Pinch — Activate or manipulate virtual tools
Teleportation — Navigate between cleanroom zones
Swipe Gesture — Flip through standard operating procedures
Haptic Controllers — Simulate tactile interaction with equipment
Use Case 3: Predictive Maintenance with Digital Twins
Scenario: A digital twin of a wafer processing tool is used to support remote diagnostics and reduce downtime.
Without a Digital Twin:
- Engineers rely on log files and manual diagnosis.
- Long delays in expert availability can halt production.
- Incorrect diagnosis may lead to avoidable part replacements.
With a Digital Twin:
- Real-time sensor anomalies are visualized via a digital dashboard.
- An AR overlay allows technicians to explore equipment virtually.
- Faulty components are auto-highlighted based on system analytics.
- Remote experts collaborate via a shared simulation environment to test repair strategies.
- The repair cycle is shortened dramatically, minimizing impact on production.
The integration of AR, VR, and digital twin technologies is redefining the way technical training, field service, and predictive maintenance are executed in semiconductor manufacturing. These tools not only accelerate learning and reduce human error but also unlock cross-border collaboration and operational efficiency — setting a new standard for precision industries operating at the edge of innovation.
10. Final Thoughts
Immersive UX is not a futuristic concept anymore — it’s here. As AR, VR, and XR evolve, designers need to think beyond flat screens and embrace spatial interaction, natural movement, and real-world context.
Start simple: learn the terms, try out a headset, build a small prototype. The future is 3D — and UX designers are the architects of this new world.
Stay curious. Stay Immersive and remember: design not just for screens, but for spaces. know more on Spatial design, UX Design for AR VR and how to use ShapeXR and Figma for design….
Disclaimer:
This article is intended for educational and knowledge-sharing purposes only. Any references to brands, platforms, or images are used purely for illustrative context. All content respects fair use, and no copyright infringement is intended.
Designing for the Immersive World: A UX Designer’s Guide to AR, VR, and XR was originally published in UX Planet on Medium, where people are continuing the conversation by highlighting and responding to this story.
